How is High-Precision CCD Technology Redefining the Future of Industrial Sheet Screen Printing?

I. The Visual Revolution in Precision Fabrication

Core Technology Unveiled: How CCD Automatic Registration Functions

The integration of Charged-Coupled Device (CCD) technology marks a significant leap forward from the limitations inherent in purely mechanical alignment systems within the screen printing industry. This sophisticated process begins with a high-resolution industrial camera system meticulously scanning the substrate or sheet material to identify pre-marked registration points or even geometric features on the material itself. Unlike manual methods that rely on human visual acuity and mechanical stops, the CCD vision system digitizes the image, calculates the precise positional deviation in the X, Y, and angular (Theta) axes in real-time, and then sends corrective signals to high-speed servo motors. These motors execute minute, dynamic adjustments to the printing table or the screen frame, ensuring that the sheet is positioned in perfect synchronization with the screen stencil before the squeegee even descends. This closed-loop feedback mechanism operates with astonishing speed and repeatability, which is fundamental to achieving the sub-micron level of accuracy demanded by modern high-tech applications. The entire process transforms alignment from a time-consuming, labor-intensive task into an automated, lightning-fast digital procedure.

Beyond Traditional Methods: The Imperative of High-Precision Alignment for Flexible Electronics

In the manufacturing of flexible electronics, touch panels, thin-film photovoltaics, and sophisticated circuit boards, the demand for registration accuracy is absolute, often requiring tolerances far tighter than what conventional manual or semi-automatic screen printers can consistently deliver. Flexible substrates, by their very nature, are prone to thermal expansion, stretching, and warping, making registration across multiple print layers a critical challenge. High-precision CCD alignment directly addresses this issue by compensating for these material instabilities with unparalleled precision. The ability to automatically adjust for subtle substrate distortions between print passes ensures that conductive traces, insulation layers, and decorative inks stack up perfectly. This level of meticulous control is not merely about cosmetic quality; it is essential for the functionality and reliability of the final electronic product, where a slight misalignment could render an entire component unusable, leading to massive material waste and increased production costs.

II. Performance Advantages in Industrial Sheet Printing

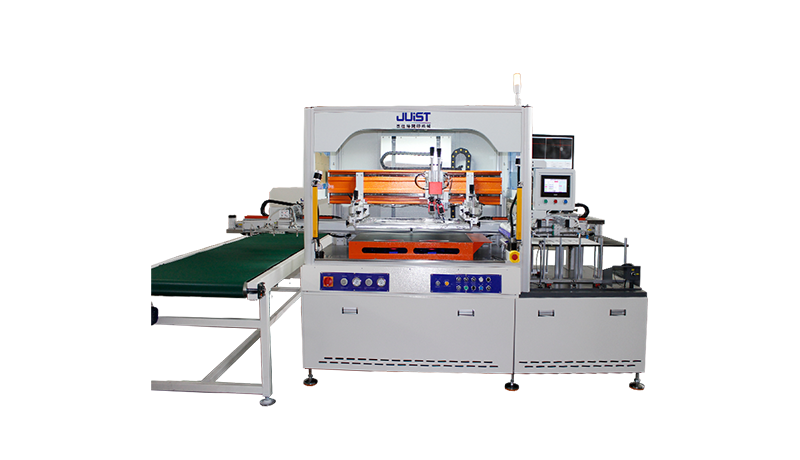

Boosting Efficiency and Yield: The Automated Transformation of the Production Line

The adoption of automatic sheet screen printing equipment featuring vision systems translates directly into a profound enhancement in overall production line efficiency and a dramatic improvement in yield rates. By removing the bottleneck of manual alignment, the machine can operate at significantly higher speeds, producing hundreds or even thousands of perfectly registered sheets per hour, a throughput rate unattainable by human operators. Furthermore, the systematic consistency of the automated system virtually eliminates the human errors that typically account for a high percentage of misprints, especially in long, continuous production runs. The improved yield—the percentage of sellable products—not only lowers the unit cost but also stabilizes the manufacturing process, making production planning more reliable and predictable. This shift from manual variability to automated precision allows businesses to confidently undertake large-volume orders that require stringent quality standards.

Flawless Graphic Reproduction on Flat Substrates: An Analysis of Application Examples

The capability of flatbed CCD screen printing systems to handle various flat substrates opens the door to a diverse array of high-value applications. Whether it involves applying intricate protective coatings to optical films, printing detailed legends onto large format glass panels, or creating multi-layer graphics on membrane switches, the machine’s precision ensures flawless execution. For instance, in the production of illuminated dashboard panels for the automotive sector, where back-lit graphics must align precisely with underlying light sources, the CCD system is indispensable. Similarly, in the creation of security printing features or highly detailed nameplates, the ability to print sharp edges and perfectly registered multi-color designs is paramount. The dense, high-opacity ink deposits characteristic of screen printing, combined with the unerring placement of CCD registration, result in products with superior visual vibrancy and exceptional durability that meet the demanding specifications of industrial use.

III. Maintenance Strategies for Sustained Operational Stability

Best Practices for Routine Operation and Deep Cleaning

To sustain the high-level performance inherent in sophisticated automatic CCD screen printers, a rigorous maintenance regime is absolutely essential, focusing on both the mechanical and the optical components. Routine daily practices should include the thorough removal of all ink residue from the mesh screen, squeegee, and flood bar immediately after a job is completed, using approved solvents to prevent ink clogging the mesh apertures. Periodically, however, a more comprehensive deep cleaning is required, particularly for the printing bed, to ensure its flatness and adherence properties remain consistent. Crucially, the sensitive CCD camera lenses and their lighting apparatus must be kept impeccably clean and free of dust or overspray, as any particulate matter can compromise the camera's ability to accurately detect registration marks, leading directly to alignment errors. Proper lubrication of all moving parts, such as linear guides and servo-driven components, according to the manufacturer's specification, is also vital for preventing mechanical wear and maintaining smooth, high-speed movement.

Practical Guidance for Resolving Common Malfunctions and Alignment Failures

While automatic systems are designed for reliability, occasional malfunctions and alignment issues are inevitable, requiring a systematic approach to troubleshooting. When a registration error occurs, the first step is often to verify the integrity of the CCD vision system: checking that the lighting is uniformly distributed and that the registration marks on the substrate are clear, well-defined, and correctly positioned within the camera's field of view. Common errors can often be traced back to incorrect tensioning of the screen mesh, which affects print stability, or a slight shift in the machine’s calibration settings. Operators should be trained to perform basic diagnostic checks, such as recalibrating the vision system’s datum points and ensuring that all pneumatic pressures are set correctly. Persistent or complex alignment failures, particularly those related to motor feedback or software inconsistencies, typically indicate a need for a deeper system diagnostic, ensuring the continued operation of this high-precision equipment.

IV. Adaptability of the Registration System Across Industrial Materials

From Thin Films to Rigid Panels: Versatility and Setup Considerations

The inherent versatility of the automatic CCD registration system allows the printer to handle a wide spectrum of materials, ranging from extremely thin, delicate films to thick, rigid glass or plastic panels. The machine achieves this adaptability primarily through adjustable vacuum levels on the printing bed, which can be finely tuned to hold thin films securely without distortion, and through flexible substrate loading and unloading mechanisms. When switching between materials, operators must carefully consider and adjust several key parameters. For instance, the off-contact distance—the gap between the screen and the substrate—may need to be altered significantly to accommodate varying substrate thicknesses, which directly impacts ink shear and print quality. Similarly, the squeegee pressure and stroke speed must be re-optimized for different material surfaces to ensure a complete and uniform ink deposit. The machine’s control interface is designed to store and recall these complex parameter sets, facilitating rapid and accurate changeovers between diverse printing jobs.

Forward View: The Evolution of Automated Optical Inspection in Screen Printing

Looking ahead, the role of CCD technology is poised to evolve beyond just alignment, moving into the realm of fully integrated Automated Optical Inspection (AOI) within the screen printing process itself. Future iterations of these printing systems are expected to incorporate high-speed, post-print inspection capabilities, where the same or a secondary vision system immediately scans the wet or cured print to detect defects such as ink skips, pinholes, smearing, or inaccurate line width. This real-time inspection feedback can then be used not only to reject defective parts instantly but also to automatically adjust printing parameters mid-run to correct for developing process variations, a concept known as self-correcting or adaptive printing. This integration of alignment and inspection represents the next frontier in manufacturing, driving toward a zero-defect production environment and cementing the CCD-equipped automatic sheet screen printer as a cornerstone of advanced, high-reliability fabrication.
