Home / Product / Glass Screen Printing Machine / Automotive Glass Screen Printing Machine / Fully Automatic Multi-Curved Glass Screen Printing Line: Suitable for printing automotive starry-sky roofs, panoramic roof glass, and multi-curved architectural glass.

Fully Automatic Multi-Curved Glass Screen Printing Line: Suitable for printing automotive starry-sky roofs, panoramic roof glass, and multi-curved architectural glass.

Automotive glass mainly includes the windshield, rear window, side windows, side mirrors, rearview mirror, and sunroof glass. These are not only essential components of a vehicle’s structure but also directly impact safety and comfort. In traditional fuel-powered vehicles, windshields and rear windows are typically made of laminated safety glass, ensuring impact resistance and clear visibility. Side windows are often produced with tempered glass, which breaks into small particles for safety. Sunroof glass emphasizes light transmission and heat insulation performance. Side mirrors and the rearview mirror, while smaller, play a crucial role in driver visibility and overall driving safety.

With the rise of new energy vehicles, the functions of automotive glass have expanded significantly. To achieve lightweight design, glass thickness is being reduced while screen printing, coating, and other processes are applied to enhance insulation and shading performance, lowering air-conditioning energy consumption and extending driving range. Windshields now integrate Head-Up Display (HUD) technology and work closely with advanced driver assistance systems (ADAS), supporting the needs of cameras and sensors. Rear windows, sunroofs, and mirrors place more focus on thermal and acoustic comfort as well as aesthetics, with some models adopting panoramic roofs instead of traditional sunroofs, combined with electrochromic technology for smart light control.

During this transformation, Changzhou JUIST Screen Printing Machinery Co., Ltd has been dedicated to developing screen printing equipment for all types of automotive glass. With high-precision solutions for flat, single-curved, and multi-curved glass, the company has built full manufacturing capabilities for the entire range of automotive glass screen printing equipment, supporting the industry’s transition from traditional manufacturing to intelligent and functional production, and providing solid support for the development of new energy vehicles.

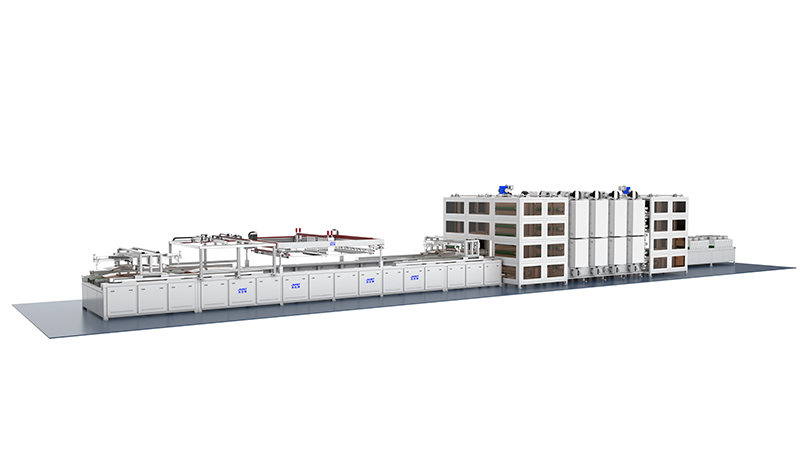

Fully Automatic Multi-Curved Glass Screen Printing Line: Suitable for printing automotive starry-sky roofs, panoramic roof glass, and multi-curved architectural glass.
Fully Automatic Multi-Curved Glass Screen Printing Line: Suitable for printing automotive starry-sky roofs, panoramic roof glass, and multi-curved architectural glass.
Technical Data Features
Specific data/Model JST1522QM-CCD 1.Manual loading or mechanical hand loading, CCD visual alignment, automatic printing, manual or manipulator unloading.
2.Printing using servo motor, high precision to ensure the quality of printing products stable, uniform printing without waves.
3.Printing screen lifting adopts servo motor with linear guide rail up and down movement.
4.CCD camera is used to take photo alignment, which is suitable for multi-color overprinting of curved glass with different shapes.
5.The lifting, printing, rotation and fixture movement of the whole set of equipment use a four-axis CNC system to realize 3D curved glass trajectory printing.
6.CCD alignment platform in and out of the servo motor with linear guide rail left and right movement.
7.The machine is equipped with automatic alarm device and peripheral safety protection switch to ensure safe production.
8.The line features the printer and the dryer hi-integrated automation control.
Max. printing size 1500mm*2200mm
Min. printing size 500mm*1000mm
Screen frame size 2600mm*3200mm
Thickness of printed glass 1.6mm-3.5mm
Glass curvature Multi-curved
Min. curvature 400mm
Glass arc rise ranges 10-100mm/m
Arc depth 50mm/m
Precision ±0.05mm
Production capacity About 150-200PCS/H
Total power 7KW
Total weight 2500kg
Machine dimension Tailor made

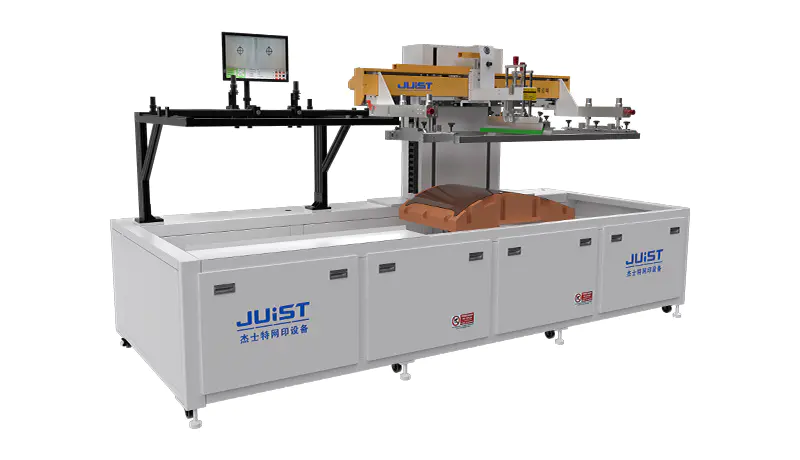

Fully Automatic Single-Curved Glass Screen Printing Machine: Suitable for printing automotive central control display glass and other single-curved glass.
Fully Automatic Single-Curved Glass Screen Printing Machine: Suitable for printing automotive central control display glass and other single-curved glass.
Technical data Features
 Model/Specific data JST5080QM-CCD JST6012QM-CCD

1. Handmade manual or mechanical load, leveling visual processes, automatic printing, manual or operational unloading.
2. Printing using 2 servo drives, stable printing quality, high precision to ensure uniform printing without waves.
3. Screen printing
4. The CCD camera is used to take photos. This is suitable for multi-color reproductions of curved glass in various shapes.
5. Lifting, printing, rotating, and device movement of the entire set of equipment implement 3D curves using CNC systems of four axial systems
Glass trail print.
6. Platform from servo with CCD B equalization platform and linear guide guide to left and right movements
7. The machine is equipped with automatic signals and surrounding security switches to ensure safe production.
 Maximum printing size 500mm*800mm 600mm*1200mm
 Mining media sizes 200mm*300mm 200mm*300mm
 Screen frame size 800mm*1300mm 900mm*1700mm
 Release the height 300mm 300mm
 Glass thickness 0.5-4mm 0.5-4mm
 Accuracy ±0.02mm ±0.02mm
 Production capacity Approx. 180-220pc/h Approx. 150-200pcs/h
 Total power 7KW 7KW
 Gross weight 1500kg 1800kg
Machine - Measurement 3100mm*1400mm*2200mm 3900mm*1500mm*2200mm
Fully Automatic Automotive Glass Screen Printing Machine: Suitable for printing large-size automotive glass such as windshields and rear windows.
Fully Automatic Automotive Glass Screen Printing Machine: Suitable for printing large-size automotive glass such as windshields and rear windows.
Technical Data Features
Specific data Model JST1220GL-S JST1425GL-S JST2030GL-S

1. Loading, accurate positioning, printing, unloading automatic operation, easy operation, quality assurance.
2. Precise positioning using servo motor with high precision linear guide rail, high precision.
3. Printing adopts servo motor with high precision to ensure stable quality of printing products and uniform printing without wavy shape.
4. The glass is transported to the printing platform with a servo motor shuttle structure, which has high speed and high precision.
5. Screen lifting adopts a servo motor, with a linear guide rail moving up and down, high precision, and fast speed.
6. The control system adopts imported PLC which can write the control system and man-machine interface.
7. The machine is equipped with an automatic alarm device peripheral safety protection switch, and optional pneumatic mechanical
safety protection device, to ensure safe production.
Max printing size 1200mm*2200mm 1400mm*2500mm 2000mm*3000mm
Min printing size 500mm*600mm 650mm*800mm 650mm*800mm
Screen frame size 1800mm*2900mm 2000mm*3400mm 2600mm*3900mm
Thickness of printed glass 1.6-6mm 1.6-6mm 2.5-6mm
Mechanical speed About9-11 S/PCS About10-12 S/PCS About2-15 S/PCS
Total power 10KW 10KW 10KW
Total weight 3500KG 4000KG 4500KG
Machine dimension 8600mm*1600mm*2200mm 9500mm*1800mm*2200mm 11000mm*2400mm*2200mm
Fully Automatic Tempered Bent Glass Screen Printing Machine: Suitable for printing small-size bent tempered glass such as interior rearview mirrors and exterior side mirrors.
Fully Automatic Tempered Bent Glass Screen Printing Machine: Suitable for printing small-size bent tempered glass such as interior rearview mirrors and exterior side mirrors.
Technical Data Features
Specific data Model JST5080GL-S JST7014GL-S JST7018GL-S JST8014GL-S JST8020GL-S 1. Glass loading, accurate positioning, printing, unloading automatic operation, easy to operate, ensure quality.
2. A Non-slip belt is adopted for upper glass conveying, frequency conversion, and speed regulation.
3. The glass positioning adopts pneumatic mechanical preliminary positioning to automatically correct the glass deviation.
4. The precision positioning of glass adopts a servo motor with high precision linear guide rail, fast speed, and high precision.
5. Glass printing adopts a servo motor, high precision to ensure the stable quality of printing products, and uniform printing without wave.
6. A Non-slip belt is adopted for glass conveying to the printing platform, frequency conversion step-less speed regulation.
7. The screen plate lifting adopts a servo motor, which moves up and down with a linear guide rail, with high precision and fast speed.
It is suitable for printing on curved glass panels.
Max printing size 500mm*800mm 7000mm*1400mm 700mm*1800mm 800mm*1400mm 800mm*2000mm
Min printing size 220mm*350mm 250mm*500mm 250mm*500mm 250mm*500mm 250mm*500mm
Screen frame size 800mm*1600mm 1100mm*2200mm 1100mm*2600mm 1200mm*2200mm 1200mm*2800mm
Thickness of printed glass 2-6mm 2-6mm 2-6mm 2-6mm 2-6mm
Mechanical speed About9-10 S/PCS About8-10 S/PCS About8-10 S/PCS About8-10 S/PCS About9-11 S/PCS
Total power 5KW 5KW 5KW 6KW 6KW
Total weight 2500kgkg 3000kg 3500kg 3200kg 3800kg
Machine dimension 4800mm*1200mm*2200mm 6200mm*1300mm*2200mm  7400mm*1300mm*2200mm 6200mm*1300mm*2200mm 8000mm*1400mm*2200mm

Applications:

Suitable for printing on all types of automotive glass.
